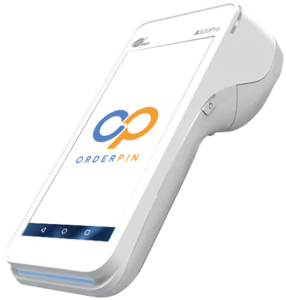

PAX A920 PRO
The A920Pro is built for diverse industries, including public transport, home delivery, queue busting, and petrol stations. With a fast processor and expanded memory, it seamlessly runs multiple applications at once. It efficiently handles table orders, payments, and loyalty programs—all fully integrated to support every payment method.
- Powered by Android 8.1 or 10
- Cortex A53 processor
- 5.5" capacitive touchscreen
- 4G + WiFi + Bluetooth
- Contactless + chip & PIN + magstripe
- PIN on glass technology
- 5MP front + 8MP rear camera
- Professional scanner
- 5150mAh / 3.7V long-lasting battery
- Fast-speed printer
- PCI PTS 5.x (Android 8.1) or 6.x (Android 10) SRED
PAX A920 PRO Features
| Platforms | PayConex, Decryptx | Mobile | Yes |
|---|---|---|---|
| P2PE | Yes | Connection | Bluetooth, 4G, WiFi(WPA2) |
| EMV | Yes | Signature Capture | Yes |
| PIN Debit | Yes | Keypad | Yes |
| Standalone | Yes | PINpad | Yes |
| Semi-Integrated | No | Printer | Yes |
| Contactless | Yes |
PAX A920 PRO Specifications
Functions: Supports multiple payment methods: contactless, chip & PIN, and magstripes, Equipped with a high-speed thermal printer, Features a professional barcode scanner for efficient QR code and barcode reading, Includes a 5MP rear camera with autofocus and flash
Display: 5.5-inch capacitive touchscreen with a resolution of 720 x 1440 pixels
Communication Interface: 4G LTE + Dual-band Wi-Fi (2.4GHz, optional 5GHz) + Bluetooth 4.0 (optional 5.0) + Dual SIM support + 1 x Micro USB port
Power & Battery: 3.7V, 5150mAh Li-Ion battery
Charging: Supports charging via the Micro USB port. Optional charging bases: Charging Base, Multi-Functional Base, Wireless Base
Battery Life: 10 hours
Supported Operating Systems: Powered by Android 8.1 or 10
Certification: PCI PTS 5.x SRED, EMV L1 & L2, EMV L1 Contactless, Visa payWave, Mastercard PayPass, American Express
Dimensions: Length: 7.02 inches (178.3 mm) x Width: 3.07 inches (78.0 mm) x Height: 2.13 inches (54.2 mm)
Weight: Approximately 11.3 oz (320 grams), including the battery
PAX A920 PRO FAQs
How do I install a SIM card in the PAX A920 Pro?
To install a SIM card, first power off the terminal. Turn the device over and slide the battery cover lock to the right. Remove the battery cover and lift out the battery. Insert the SIM card into the slot labeled “SIM1” with the diagonal corner facing the top left. Reinsert the battery, replace the cover, and lock it. Finally, power on the terminal by holding the power button for three seconds. The device should automatically detect the SIM card and configure network settings.
What is the difference between a Debug device and a Live device for the PAX A920 Pro?
A Debug device is intended for development purposes, allowing APK sideloading and file transfers via USB. In contrast, a Live device is designed for market deployment, with applications updated exclusively through PAXSTORE to ensure security and compliance.
How can I troubleshoot authentication problems on my PAX A920 Pro?
If you encounter authentication issues, first check that you have a stable internet connection. Verify that your login credentials are correct and ensure the device has the necessary permissions. If the problem persists, contact customer support for further assistance.
What should I do if the PAX A920 Pro's screen freezes during a firmware download?
If the screen freezes while downloading firmware, restart the device by holding the power button for several seconds. Ensure you have a stable internet connection before attempting the update again. If the issue continues, reach out to technical support for guidance.
How do I load paper into the PAX A920 Pro's printer?
To load paper, open the printer cover located at the top of the device. Insert the thermal paper roll with the paper feeding from the bottom. Close the cover securely, ensuring the paper feeds correctly to avoid printing issues.
About OrderPin POS
OrderPin is a cloud-based POS software built on AWS(Amazon Web Services). The entire software package consists of multiple software modules that work on different hardware. Different software modules work together through AWS cloud services to help restaurants improve operational efficiency. Learn more>>
Orderpin POS software portfolio including Desktop POS, Back office, Handheld APP, KIOSK APP, Online ordering system, KDS (Kitchen Display Screen) APP and etc.
Among them, Orderpin’s Handheld Device APP is well adapted to the A920 PRO hardware and verified by many merchants.
PAX A920 PRO White-label POS Solution
Discover how the PAX A920 PRO can transform your payment experience and unlock new revenue streams. Ready to take your business to the next level?
BUILD YOUR BRAND
- Customize the POS with your logo, colors, and unique design
- Strengthen brand recognition and customer trust
- Position yourself as a leading POS provider in your market
TAKE TOTAL CONTROL
- Manage merchant accounts independently without relying on third parties
- Set your own pricing, terms, and service offerings
- Adapt features and functionalities to meet specific business needs
EXPAND CLIENTS BASE
- Offer a cost-effective, customizable POS solution to attract more merchants
- Stand out in a competitive market with unique features
- Scale your business faster with a flexible and profitable model
